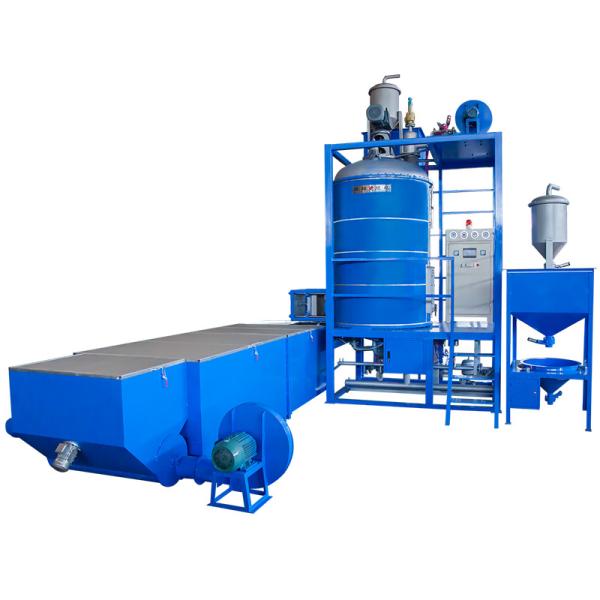

Automatic Pre-expander
Main features
1. The machine adopts PLCprogrammable controller and touch screen
control,autommatic suction, autommatic electronic
weighing,automatic control of barrel pressure and temperature when
feeding,automatic discharge to the fluidized bed,etc.It has the
function of feeding once to ensure the machine’s automatic
circulation production.
2. The electrical appliances,pneumatic components and valves uesd
in the machine are well-known brands at home and abroad,which
ensures the stability,reliability and long service life of the
machine.
3. German steam and air proportional valve is used to control the
pressure and temperature of the barrel body,and Korean vibration
level sensor is used to control the material level.Make the foamed
beads unfom.(to be matched)
| Models |
| Subjects | Unit | DTF500J | DTF1100J | DTF1500J |
| Length | mm | 3100 | 3700 | 3700 |
| Width | mm | 1500 | 2100 | 3000 |
| Height | mm | 3500 | 4000 | 5300 |
| Weight | kg | 1200 | 2500 | 3500 |
| Energy consumption |
| Models | Unit | DTF500J | DTF1100J | DTF1500J |
| Steam consumption | KG/Cycle | 3-6 | 6-10 | 12-18 |
| Air consumption | M3/Cycle | 0.5-0.9 | 1.2-2.5 | 1.5-3 |
| Power consumption | KW | 3.1 | 9.6 | 19.8 |
| Functioning |
| Subjects | DTF500J | DTF1100J | DTF1500J |
| Expansion rate | 12-40g/l | 12-30g/l | 12-30g/l |
| Productivity | 12 g/l | 60-80 kg/h | 12 g/l | 250-300 kg/h | 12 g/l | 600-650 kg/h |
| 18 g/l | 90-120 kg/h | 18 g/l | 350-400 kg/h | 18 g/l | 900-920 kg/h |
| 20 g/l | 130-160 kg/h | 20 g/l | 450-500 kg/h | 20 g/l | 1000-1200 kg/h |
| 35 g/l | 180-210 kg/h | 30 g/l | 580-620 kg/h | 30 g/l | 1500-1600 kg/h |
| Instruction | |
| Subjects | Unit | DTF500J | DTF1100J | DTF1500J |
| Chamber | Diameter | mm | Φ500 | Φ1100 | Φ1500 |
| Height | mm | 1000 | 1500 | 2200 |
| Volume | m3 | 0.2 | 1.43 | 3.89 |
| Steam | Entry | mm | Φ25 | Φ50 | Φ50 |
| Entry Pressure | mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Compressed air | Entry | mm | Φ25 | Φ40 | Φ50 |
| Entry Pressure | mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Drainage | Motor | mm | Φ65 | Φ80 | Φ100 |
| Drainage | mm | Φ65 | Φ80 | Φ100 |
| Density calculation | - | Density calculation | Density calculation | Density calculation |
| Density tolerance | - | < ±3% | < ±3% | < ±3% |
| Spinning motor | kw | 1.1 | 4 | 11 |
Packing & Shipping
We have professional person for packing and we have longterm
cooperation with our own
cargo agent.They could help us to send the cargo to the place all
over the world with safety.For
this point,dear sir,you could believe us.
Pictures of Packing & Shipping
Our Services
1) After-sale Service:
Our engineers is avilable to oversea for coordinate installation,
commissioning and training.
Cost for flight and suitable accommodation plus USD 100 per day
each person will be charged additionally.
2) Lifetime maintenance free of charge.
3) Free training course at our plant.
4) 24 hours on line service each day; free technical support.
5) Machine has been adjusted and test before delivery.
6) Free to design the Layout of customers' plant by our technician
team.
1. Company Information
Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC
foam Cutting machine,
polyurethane cutting machine, 3D Panel Machine, Concrete Sprayer
and foam relation assistant
equipments. Eps Pre-expander machine.Through the research of our
engineers, our cutting machine
had connected well with the popularized CAD and achieved automation
and high efficiency, high
accuracy and makes iteasy to operate.We always put the customer on
the first place and make utmost
efforts to satisfy you.We wholeheartedly look forward to developing
economic, technical and trade
cooperation with you.
2. Our Company View
3. Our Team
4. Our Exhibitions
FAQ
1. Q: Are you manufacturer ?
A : Yes,We are manufacturer
2. Q: Which software do you use?
A: Dear sir,we use the CAD software
3. Q: Which way do you repair your machine
A: Our engineers is avilable to repair oversea
4. Q:Where can I find your cutting vidio?
A : Dear sir,you could find our vidio at YOUTUBE
5. Q:What is your website?
A : Dear sir,our website is www.dtfirm.com
Welcom new and old customers come and visit us!please feel free to
contact us for more information!
