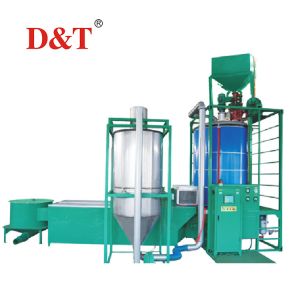

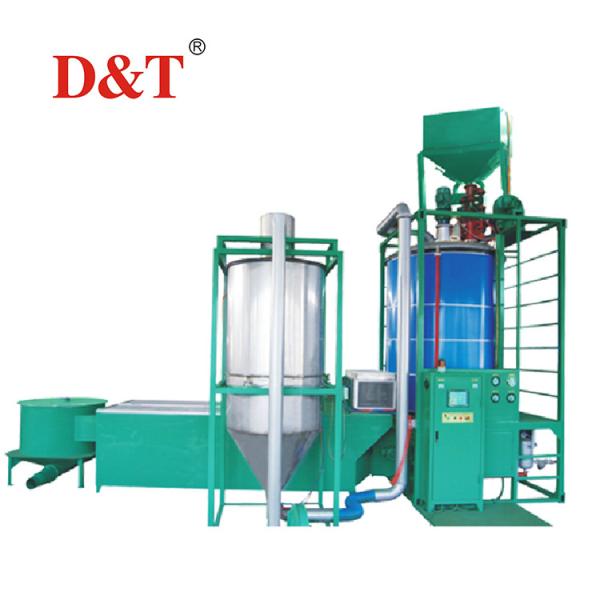

1.Picture Of polystyrene expansion beads making machine
2.Description Of polystyrene expansion beads making machine
| Item | Unit | FDS930A | FDS1100A |
| Expansion Chamber | Diameter | mm | DN900 | DN1100 |
| Volume | m3 | 0.9 | 1.4 |
| Usable Volume | m3 | 0.75 | 1 |
| Stzam | Entry | Inch | 2"(DN50) | 2"(DN50) |
| Consumption | Kg/cycle | 4~6 | 6~8 |
| Pressure | Mpa | 0.6~0.8 | 0.6~0.8 |
| Compressed Air | Entry | Inch | 2"(DN50) | 2"(DN50) |
| Consumption | m3/cycle | 0.5~0.7 | 0.9~1.1 |
| Pressure | Mpa | 0.5~0.8 | 0.5~0.8 |
| Drainge | upper drain port | Inch | 4"(DN100) | 4"(DN100) |
| The drainage outlet | Inch | 4"(DN100) | 4"(DN100) |
| Discharge port | Inch | 3"(DN80) | 3"(DN80) |
| material conveying line | Inch | 6"(DN150) | 6"(DN150) |
| Capacity | 10g/L | 230 | 320 |
| 15g/L | 320 | 550 |
| 20g/L | 450 | 750 |
| 30g/L | 670 | 850 |
| Connected load/power | kw | 17 | 19 |
| Expanded Density | m3 | 10~50 | 10~40 |
| Density Tolerance | % | ±2.5% | ±3% |
| Overall dimensions(L*W*H) | mm | 2700*4200*5900 | 2900*4500*5900 |
| Weight | kg | 2700 | 3200 |
3.Application Of Product
4.More Products For You To Choose
5.Certifications Of styrofoam polystyrene expansion beads making machine eps making
machinery
6 .Packing & Shipping
We have professional person for packing and we have longterm
cooperation with our own
cargo agent.They could help us to send the cargo to the place all
over the world with safety.For
this point,dear sir,you could believe us.
7.Pictures of Packing & Shipping
8.Our Services
1)After-sale Service:
Our engineers is avilable to oversea for coordinate installation,
commissioning and training.
Cost for flight and suitable accommodation plus USD 100 per day
each person will be charged additionally.
2)Lifetime maintenance free of charge.
3)Free training course at our plant.
4)24 hours on line service each day; free technical support.
5)Machine has been adjusted and test before delivery.
6)Free to design the Layout of customers' plant by our technician
team.
