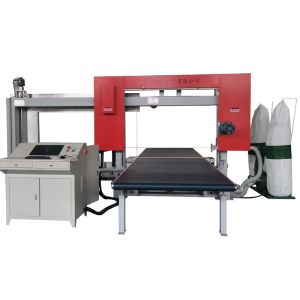

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table

Ask Lasest Price
Brand Name :	D&T
Model Number :	DTC-SD1210K
Certification :	CE
Price :	USD 25000-49000 /PC
Payment Terms :	L/C, T/T, Western Union，paypal
Delivery Time :	5 Set/Sets per Month

Add to Cart

Product Details
Company Profile

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table

DTC-SD1210K 3D CNC Foam Cutting Machine For Rigid And Semi-Rigid Foam With Vacuum Work Table

Technical Specifications

Model		DTC-F1210K
Max. Block Size	250020001200mm
Control Device	Industrial Computer
Computer Operation System	Windows7
Software	D&T Profiler
Acceptable File Formats	DXF/DWG
Number of Cutting Wire	Dual Wire (Horizonal +Vertical)
Cutting Wire Length	~8500mm (Should be confirmed by maker by machine)
Cutting Wire Diameter	0.8~2.0mm
Flying Wheel Diameter	400mm
Mainly Motor	ABB, 3kW*2pcs
Running Speed of the wheel	2860rpm
Inverter	Panasonic, for 3kW motor
Cutting Speed	0~10m/min
Precision	±0.5mm
Total Power	11kW, 400/240V, 50Hz
Gross Weight	2800kg
Overall Dimension	L6200 x W3800 x H2800mm

1.Applicable to: flexible and rigid PU, EPS, PE, PVC, EVA, rock wool, phenolic foam.

Advantages of high-speed wire contour cutter

1. The new one has a fixed working table, which prevents the product from moving slightly when the machine is started, and moves the portal frame to cut the product, thus improving the cutting accuracy
2. The cutting speed is increased by 10m/min, and the old model is 0-3m/min, so the new model has 3 times the efficiency of the old model.
3. Cutting tolerance is controlled within ±0.3 to 0.5/-0. 3 to 0.5 mm, conventional products ±0.5 to 1/0.5 to 1 mm, greatly improved accuracy.
4. The newly developed high-speed wire contour cutter adopts a servo motor instead of the step motor of the old model, further improving accuracy.
