After foaming, it needs 6 hours for cooling and curing in the ventilated warehouse.

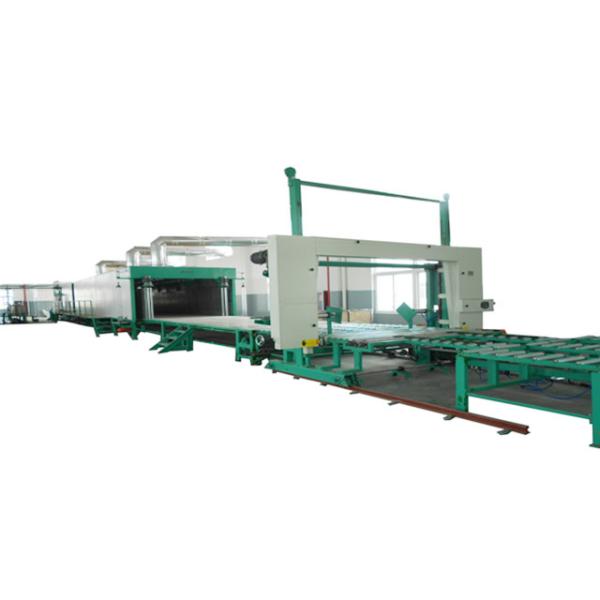

Product Description
A. specifications of each component:

1.Stirs mix rack and spongy control platform: 4m×3.2m×3.2m(L×W×H)
2. Drop board of drying tunnel 8.32m×1.2m~2.30m(L×W)
3.Side link joint of drying tunnel 17.5m×2.4m×1.2m(L×W×H)
4.Rack of drying oven 16.9m×4.55m×3.2m(L×W×H)
5. Level transportation line in the drying tunnel 17.5m×2.4m×0.8m(L×W×H)
6. The width of sponge wadding for cutting machine 2.4m×1.30m (W×H) (Undercut type)

B. main technical specifications and functions
1. Overall dimension of the equipment: 34m×4.55m×3.2m(L+total width+ H)
2. Quantity of component of foaming material: 13 groups
3. Product Width: 1200mm~2300mm
4. Product Height: ≤1200MM
5. Density: 10Kg/m³~50Kg/m³
6. Capacity: 2000mm/min~7000mm/min
7. Maximum capacity: 200~300L/min
8.Method of Foaming: 1). down spurts, sway (up, down, front, or back adjustable)
2). trough type (match 2 foaming troughs: W1550mm/w2100mm)
9. Membrane lift installment (Flat topping function)
10. Announcing arrestor for material lack( foaming protect function)
11. Drop board of drying tunnel operated height and width by electrically
12. Transportation line of side link joint of drying tunnel operated height and width by electrically
13. The body paper and film put away automatically
14. Easy to change the two mix stirs (Φ100mm) and pre-mixer
15. The Method to control expanding:
1).Control by PLC, kinds of different types of sponge continuously once
2).Entire transducer control, production line synchronization;
16. The Maximum Size of the sponge: 1500mm×2300mm×1300mm(L×W×H).
17. The electrical machinery power of mix stirs: 37kw
18. Total Power: 130kw
