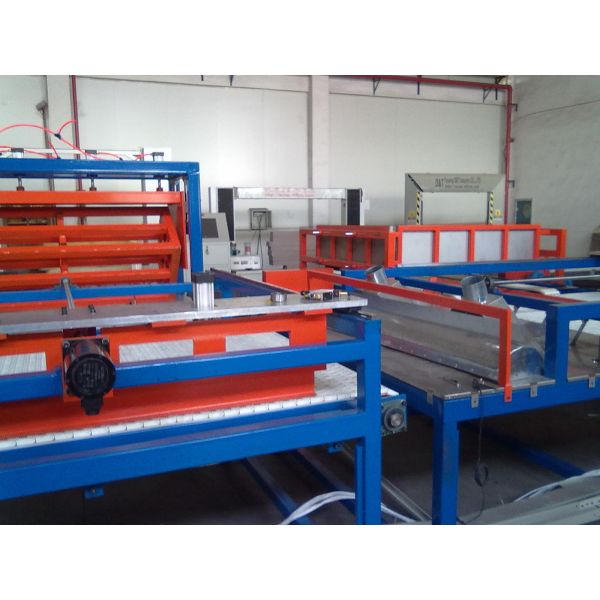

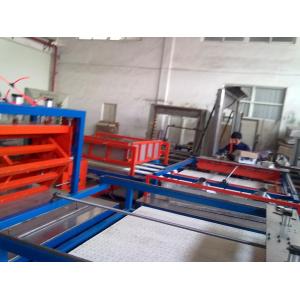

It is a PLC control floral foam cutting machine
The whole cutting line is composed as follows:
A Belt Conveyor (1) 2500mm length, 1200 width for floral foam Block
transporing
after cutting. It is driven by an AC motor. It has two pneumatic holding systems.
A mobile horizontal cutting station (2) for horizontal cutting. It
is used to cut the foam
block to requestd thickness which is 80mm. The whole horizontal
cutting frame is driven
by an AC motor which driven by an inverter.
A Belt Conveyor (3) 1800mm length, 1200 width for floral foam block
transport.
It keeps same speed and action with (1) belt conveyor.
A vertical cutting station (4) for vertical cutting. It can cut the
floral foam
boards 1450mm*1450mm*80mm to be 1450mm*230mm*80mm and trimming two
sides.
It has the de-dust system to take the dust during cutting away.
A Belt Conveyor (5) 1800mm length, 1500 width for floral foam block
transport.
It is driven by an AC motor.
A vertical cutting station (6) for vertical cutting. It can cut the
floral foam boards
1450mm*230mm*80mm to be 110mm*230mm*80mm and trimming two sides.
It has the de-dust system to take the dust during cutting away.
A pneumatic marking system (7) for stamp marks on the final
product.
It can press down with logo molds automatic.
A Belt Conveyor (8) for final product which size is
110mm*230mm*80mm tranport out.
Technical Data
| Max. Block Size | L1450*W1450*H1200mm |
| Final Product Size | L110*W230*H80mm |
| Total Power | Approx. 9kw |
| Cutting Speed | 0~6m/min adjustable |
| Compress Air | 6 Bar |
Specifications
The cnc contour cutting machine is currently the most advanced and
practical cnc cutting equipment with the lowest noise ,highest
output, controlled by PC system, cut foam into various shapes.
blade with durable, low-loss in devices; smooth running with good
internal dynamic balance, good structure & outline, high
reliability & long life, friendly interface & compatibility, and
suitable for various applications needs.
After-sale Service:
1. Our engineers is avilable to oversea for coordinate
installation, commissioning and training. Cost for flight and
suitable accommodation plus USD 60 per day each person will be
charged additionally.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted and test before delivery.
Warranty: 12 months limited warranty starting from date of delivery excluding wear parts.
shipping cost for parts to be replaced during warranty period have
to be borned by the customers.
Terms of Paypent: 30% advance payment by T/T upon signing the contract
70% covered by Confirmed Irrevocable Sight L/C
Company Information
Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC
foam Cutting machine,
polyurethane cutting machine, 3D Panel Machine, Concrete Sprayer
and foam relation assistant
equipments.
Through the research of our engineers, our cutting machine had
connected well with
the popularized CAD and achieved automation and high efficiency,
high accuracy and makes it
easy to operate.We always put the customer on the first place and
make utmost efforts to satisfy
you.We wholeheartedly look forward to developing economic,
technical and trade cooperation
with you.
Products: Fast wire cutting machine, pu cutting machine, hot wire
cutting machine, eps
cutting machine, 3D panel production line, concrete spray machine
and so on.
1. Q:Are you a factory ?
A:Yes,We are a manufacturer and doing the foam machines since 2006.
2. Q: Which drawing software do you use?
A: Auto CAD.
3. Q: Whether your engineer can come to our factory for
installation of the machine?
A: Yes, sure.
4. Q: Can you import DXF files from another source?
A : yes. Any DXF files is acceptable.
5. Q:The other fast wire machine had dust extraction and filtering.
Does this machine also have dust extraction?
A : Yes, include it.
6. Q: What countries have you sold to?
A:
Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria
etc.
7. Q: What safety controls are on the machine?
A: There are urgence bottoms on the control box and machine for
accident to stop the mahicne.
There are two fence around the cutting frame, the machine will stop
when you open the fence.
